HMC Series Single Pulse Bag Dust Collector Single Pulse Bag Filter 1500m3/H-9000m3/H
-
Highlight
HMC Series Baghouse Dust Collector
,24m3 Baghouse Dust Collector
,84m3 Single Pulse Bag Filter
-
Product NamePulse Jet Dust Collector
-
Filter Area24m3-84m3
-
Air Handling Volume1500m3/h-9000m3/h
-
FeatureHigh Efficiency、Stronger Dust Cleaning Ability
-
UsageCement, Lime, Coal, And Other Industrial Powder
-
Efficiency＞99.5%
-
Place of OriginChina
-
Brand NameWS
-
Model NumberHMC

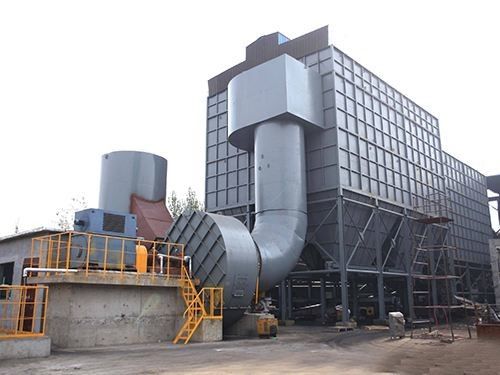

HMC Series Single Pulse Bag Dust Collector Single Pulse Bag Filter 1500m3/H-9000m3/H
HMC Series Single Pulse Bag Dust Collector Single Pulse Bag Filter 1500m3/H-9000m3/H
Product Description:
The HMC single pulse bag dust collector is a small bag dust collector designed by our company after digesting and absorbing similar products at home and abroad and improving it. The dust collector adopts pulse injection dust cleaning method, which has the advantages of good dust cleaning effect, high purification efficiency, large air volume, long filter bag life, small maintenance workload, and safe and reliable operation.
The HMC pulse jet baghouse dust collector is widely used in dust removal, purification and material recovery of non-fibrous industrial dust in various industrial and mining enterprises such as metallurgy, building materials, machinery, chemical industry, and mining.
The HMC pulse jet fabric filter baghouse has six specifications, and each specification can be divided into two types: standard type A with ash hopper and type B with open flange (no ash hopper). Its structure is mainly composed of filter chamber, filter bag, purification room, ash hopper, flap valve, pulse injection ash cleaning device, electric control cabinet, etc. The box body is all welded structure. The access door is sealed with foam tape to ensure that the dust collector is airtight.
This product is available in six specifications, with over-built areas ranging from 24-84m2 and air handling volumes ranging from 1500m3/h-9000m3/h. It can also be specially designed according to the actual needs of the user.
Product Specfication:
| HMC-32 | HMC-48 | HMC-64 | HMC-80 | HMC-96 | HMC-112 | |||||||
| Processing air volume (m3/h) | 1500-2100 | 2100-3200 | 2900-4300 | 4000-6000 | 5200-7000 | 6000-9000 | ||||||
| total filter area (m3) | 24 | 36 | 48 | 60 | 72 | 84 | ||||||
| filter speed (m/min) | 1.00-1.50 | 1.00-1.50 | 1.00-1.50 | 1.10-1.70 | 1.20-1.70 | 1.20-1.80 | ||||||
| filter bag number (pcs ) | 32 | 48 | 64 | 80 | 96 | 112 | ||||||
| Inlet gas temperature (℃) | ≤120℃ | |||||||||||
| Dust collector resistance (Pa) | ≤1200 | |||||||||||
| Imported dust concentration (g/m3) | ＜200 | |||||||||||
| Import emission concentration(mg/m3) | ≤100 | |||||||||||
|
For dust cleaning compressed air |
Pressure(Pa) | 5~7*105 | ||||||||||
| power consumption(m3/min) | 1.5 | 3.0 | 3.0 | 5.5 | 5.5 | 7.5 | ||||||
|
Weight kg |
A(With ash bucket) | 1350 | 1620 | 1850 | 2360 | 2800 | 3200 | |||||
| B(Without ash bucket) | 1220 | 1470 | 1670 | 1670 | 2540 | 2880 | ||||||
Product Structural Features:
1. The dust collector body consists of four parts: the shell, the filter bag assembly, the injection dust cleaning device, and the ash discharge device.
2. The shell part consists of an upper box, a middle box, a ash hopper, and an air inlet and outlet.
3. The filter bag assembly consists of a filter bag, a filter bag frame, etc.
4. The injection soot cleaning device consists of an air bag, an injection pipe, a pulse valve, an electromagnetic control valve, an electric control instrument, etc.
5. The ash discharge device consists of a motor, reducer, screw conveyor, and star discharge valve.
6. Pulse valve type I uses a right-angle pulse valve, and type II uses a straight-through pulse valve, which reduces the resistance of the pulse valve itself and is an ideal pulse injection form.
Our products are sold all over the world, you can rest assured.
