YT Type Oil Immersed Electric Conveyor Roller Motorised Drum Rollers For Belt Conveyor
-
Highlight
YT Type Motorized Conveyor Roller
,Oil Immersed Motorized Conveyor Roller
,1000mm Motorised Drum Rollers
-
Product NameElectric Drum Roller
-
Dia630-1000mm
-
Cooling MethodOil Immersed
-
ApplicationBelt Conveyor, Bucket Wheel Stacker And Reclaimer, Ship Loading And Unloading Machine
-
Place of OriginChina
-
Model NumberYT Type
YT Type Oil Immersed Electric Conveyor Roller Motorised Drum Rollers For Belt Conveyor
YT Type Oil Immersed Electric Conveyor Roller Motorised Drum Rollers For Belt Conveyor

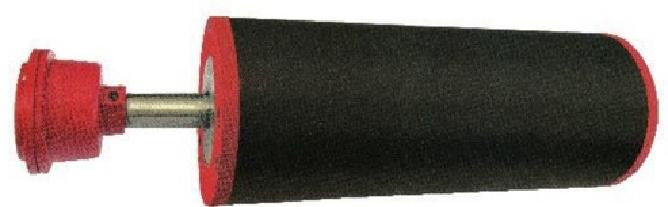

Electric Conveyor Roller Overview
YT Type Oil Immersed Electric Drum Roller, the motor adopts oil-immersed direct cooling, and is equipped with a planetary gear reducer. It has large torque, high precision, low noise, fully sealed drum, no leakage, and can be used in dusty, humid and other harsh environments, is an ideal driving device for belt conveyors, bucket wheel stackers and reclaimers, and ship loading and unloading machines.
Motorised Drum Roller
|
滚筒直径D mm |
功率P KW |
带宽B mm |
滚筒表面线速度V(m/s) | 质量M | ||||||
| 1.0 | 1.25 | 1.6 | 2.0 | 2.5 | 3.15 | 4.0 | kg | |||
|
630 |
18.5 22 30 37 |
800 | √ | √ | √ | √ | √ | √ | √ | 1200/1250/1350/1450 |
| 1000 | √ | √ | √ | √ | √ | √ | √ | 1250/1300/1400/1500 | ||
| 1200 | √ | √ | √ | √ | V | √ | √ | 1300/1350/1450f1550 | ||
| 1400 | √ | √ | √ | √ | √ | √ | √ | 1350/1400/1500/1600 | ||
|
φ800 |
18.5 22 30 37 |
800 | √ | √ | √ | √ | √ | 1270/1320/1420/1520 | ||
| 1000 | √ | √ | √ | √ | √ | √ | 1320/1370/1470/1570 | |||
| 1200 | √ | √ | √ | √ | √ | √ | 1370/1420/1520f1620 | |||
| 1400 | √ | √ | √ | √ | √ | √ | 1420/1470/1570/1670 | |||
|
45 55 |
1000 | √ | √ | √ | √ | √ | √ | 2080/2130 | ||
| 1200 | √ | √ | √ | √ | √ | √ | 2200/2250 | |||
| 1400 | √ | √ | √ | √ | √ | √ | 2320/2370 | |||
|
1000 |
45 55 |
1000 | √ | √ | √ | √ | √ | 2150/2200 | ||
| 1200 | √ | √ | √ | √ | √ | 2300/2350 | ||||
| 1400 | √ | √ | √ | √ | √ | 2500/2550 | ||||
Motorized Conveyor Roller
