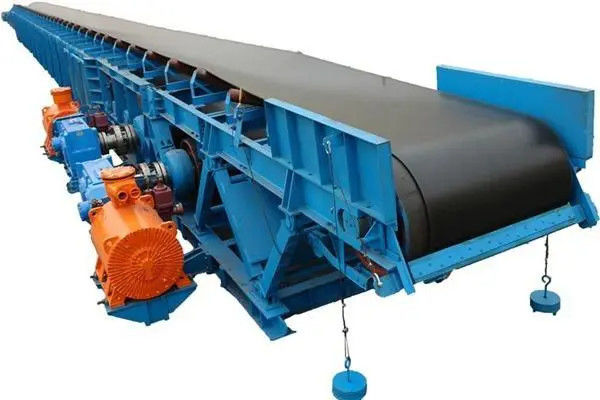

Maximum Conveying Length 11km Fixed Tripper Belt Conveyor System For Bulk Material Transportation

Maximum Conveying Length 11km Fixed Tripper Belt Conveyor System For Bulk Material Transportation

Belt Conveyor Description:

Fixed discharge belt conveyor system is a common industrial conveying equipment used to transfer materials from one location to another. This system usually consists of a belt conveyor, a drive device, a support structure and a discharge device.

The belt conveyor transports materials along the conveying line by driving the conveyor belt. In the fixed discharge belt conveyor system, the conveyor is usually fixed in one position, and the discharge device can be designed as needed to achieve different discharge methods, such as direct discharge, dispersed discharge, etc.

This system is widely used in many industrial fields, such as mining, building materials, chemicals, etc. By using a fixed discharge belt conveyor system, the material can be automatically and efficiently transported, the production efficiency can be improved, the labor cost can be reduced, and the loss and pollution of the material during the transportation process can also be reduced.

Component Composition:

1. Driving device, used to provide power

2. Roller, the core component of the conveyor, the transmission roller drives the belt through friction to achieve the purpose of sending materials from one point to another, the redirection roller changes the running direction of the belt and increases the wrapping angle of the transmission roller. The larger the wrapping angle, the smaller the required tension.

3. Conveyor belt, the material bearing and traction part, commonly used are cotton canvas belt, polyester canvas belt, wire rope core belt, etc.

4. Roller, used to support the belt and material for stable operation.

5. Tensioning device, its function is to keep the conveyor belt with the necessary tension to prevent slipping, and at the same time control the deflection of the conveyor belt between the rollers, to reduce resistance and avoid material spillage.

6. Cleaner, head cleaner and empty section cleaner, prevent materials from being rolled into rollers and drums and falling on the ground.

7. The frame, including the head frame, tail frame, middle frame, legs, etc., is the skeleton of the conveyor.

8. The guide trough and funnel mainly play the role of material transfer and storage

9. The protection device is a variety of electrical switches set to protect the safety and normal operation of the conveyor system.
